YSC-YD-02 police restricting fork

The tube body adopts anti-skid design with aviation aluminum,thus being portable and solid.

Material of tube body:φ34mm(rear handheld tube）

φ28mm(front extension bar）

Thickness:2.5mm

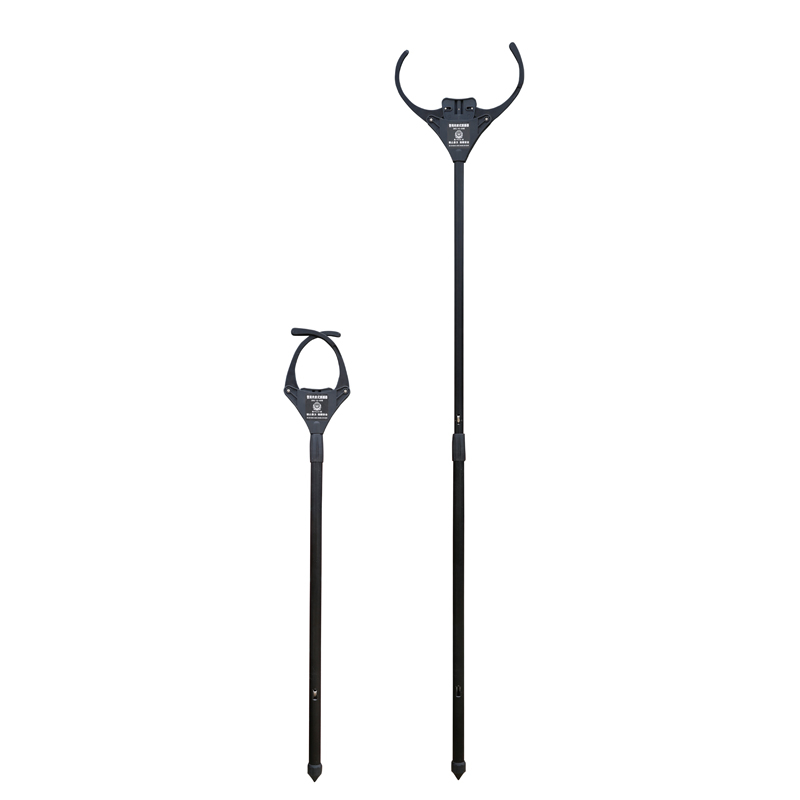

Contracted:1300±5mm

Extended:2150±5mm

Fork head fixed part on the head:It adots high-quality high-strength

nylon,thus with strong anti-impact force.The fork head is die cast with high-strength alloy aluminum and adopts opposed prestressed design,thus thse locked can not run away.

Maximum opening of fork head,inner:295±5mm

Minimum locking of fork head,inner:110±5mm

Maximum working longitudinal bearable force(extended):500N

Maximum working bearable bending force:500N

Maximum transverse working bearable force:500N

weight:≤2kg

Production standard meets the relevant requirements in police restraint fork of type GA/T1145-2014
